Heavy Duty VCS Vertical Overlay Cladding Welding Machine

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Rose

I'm Online Chat Now

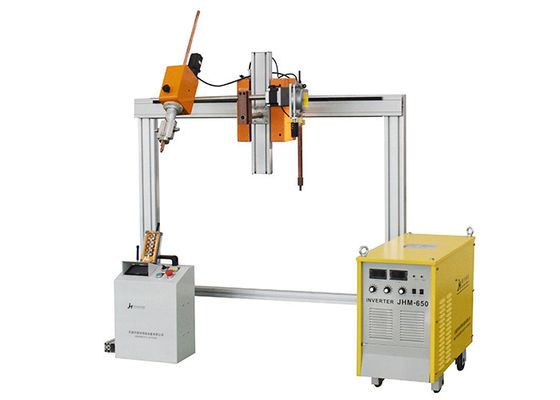

Heavy Duty VCS Vertical Overlay Cladding Welding Machine

Heavy Duty VCS  Vertical Overlay Cladding Welding Machine
Heavy Duty VCS  Vertical Overlay Cladding Welding Machine

Large Image :  Heavy Duty VCS Vertical Overlay Cladding Welding Machine

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: JINHUA
Model Number: JH-350S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD+2000-50000+Unit
Packaging Details: Wooden Box
Delivery Time: 15-60 Days
Payment Terms: T/T
Supply Ability: 30+Units+Per Month
Detailed Product Description
Machine Type: Overlay Welding Machine, Automatic Cladding System, Weld Overlay Cladding System Condition: New
Material: Carbon Steel, Alloy Steel After-Sales Service: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service
Warranty: 1 Year Color: Yellow, Blue, Customized
Voltage: 20V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V Or 220V/60HZ /3P (Also According To Your Local Voltage) Industries: Cement, Steel, Mining, Power, Security, Agriculture, Recycling
Advantage: Wear Resistance
High Light:

VCS Vertical Bore Cladding Machines

,

VCS Cladding Welding Machine

,

Weld Overlay Cladding System

Vertical Cladding Machine, Automatic Cladding System, Weld Overlay Cladding System





1. Production Instruction

JH-350S Vertical Bore Cladding System is designed to perform fully-automated GTAW build up of corrosion-resistant metal components such as  subsea christmas tree assemblies. The JH-350S package is a complete turnkey system that includes a KEY 1250 PLC system controller with touch-screen control weld-data-documentation recording software, a remote control pendant, a 500 or 700 amp pulsed-TIG power source, a 150 amp Hotwire TIG power source, motorized vertical and horizontal cross slides mounted on a heavy duty manipulator, a 15-ton capacity floor-mounted turntable with closed-loop drive and a secondary encoder for position feedback. The system also includes an integrated wire feeder and cladding torch with integrated wire-feed guide.



2. Specification

Model JS-350S
Weld Process Hotwire TIG
Manipulator Heavy-duty motorized cross-slides
Turntable 6 foot diameter table, 15 ton capacity with slip ring
Standard Power Source Miller Maxstar 700 with Coolmate 3.5 cooler, Maxstar 200 DX
Optional Power Source Other power sources are available
Maximum Height Bore Depth Up to 78.7 in (2000 mm) depending on torch type and vertical slides used
Minimum Weldable Bore 1.77 in (45 mm) diameter
Water Cooled TIG Torch Various fixed and adjustable-angle torch heads available
Welding Speed 7.87 in/min to 17.7 in/min (20 to 45 cm/min)
Air Pressure Requires 3-4 bar / 45-60 psi
Control KEY 1250 PLC Controller
Control Functions Controlled by 15 in TFT HMI or remote pendant
Input Power RDA VCS 700 VCS (controller, manipulator, turntable) - 380 to 480 V, 3 phase, 50/60 Hz
Input Power Miller Power Sources Maxstar 700 and Maxstar 200DX - 380 to 480 V, 3 phase, 50/60 Hz
Input Power Miller Cooler Coolmate 3.5 - 115 VAC 50/60 Hz (from power source)
Overall Height 216.5 in (5500 mm)
Shipping Weight 21,054 lb (9550 kg) complete system



3. Delivery

Heavy Duty VCS  Vertical Overlay Cladding Welding Machine 0



Heavy Duty VCS  Vertical Overlay Cladding Welding Machine 1
