3.5M min 1200mm Continuous Casting Roller Hardfacing Machine

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Rose

I'm Online Chat Now

3.5M min 1200mm Continuous Casting Roller Hardfacing Machine

3.5M min 1200mm Continuous Casting Roller Hardfacing Machine
3.5M min 1200mm Continuous Casting Roller Hardfacing Machine

Large Image :  3.5M min 1200mm Continuous Casting Roller Hardfacing Machine

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: JINHUA
Model Number: JH-6000DEG
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD+2000-50000+Unit
Packaging Details: Wooden Box Package
Delivery Time: 15-60 Days
Payment Terms: T/T
Supply Ability: 30+Units+Per Month
Detailed Product Description
Machine Type: Continuous Casting Roller Hardfacing, Roller Cladding Machine Machine, Roller Overlay Welding Machine Condition: New
Material: Carbon Steel, Alloy Steel After-Sales Service: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service
Warranty: 1 Year Color: Yellow, Blue, Customized
Voltage: 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V Or 220V/60HZ /3P (Also According To Your Local Voltage) Industries: Cement, Steel, Mining, Power, Security, Agriculture, Recycling
Advantage: Wear Resistance
High Light:

1200mm Roller Hardfacing Machine

,

3.5M min Roller Overlay Welding Machine

,

400mm Roller Hardfacing Machine

Continuous Casting Roller Hardfacing, Roller Cladding Machine Machine, Roller Overlay Welding Machine



1. Introduction

JH-6000DEG has the functions of open-arc surfacing, swing surfacing and submerged-arc surfacing. The function of ARC-BREAKING memory, self-stabilization of gun head and automatic control of arc pressure in surfacing process. Stable wire feeding and large wire feeding moment during surfacing process can realize high-speed surfacing and swing surfacing, increase penetration and deposit efficiency.

The electromagnetic and mechanical stirring effect of arc on the molten pool is strengthened in the swing surfacing process, which makes the weld structure more reasonable and uniform and the weld bead more smooth. All process parameters, including current, voltage, wire feeding speed, walking speed, walking distance, bead width and welding time, are automatically controlled

The machine tool control system uses Chinese (English) touch screen man-machine conversation data. It can set the moving speed, swing speed, swing width, welding speed, rotating speed and the length of continuous casting roll to realize automatic control.



2. Technical Parameter

Maximum clamping length 1200mm
Maximum loading diameter 400mm
Maximum load 1500kg
Welding swing width 5-80mm
Welding swing speed 0.1-3.5M/min
Rotation speed 0.05-0.3r/min
Welding voltage 0-45V
Welding Current 300-750A



3. Pictures

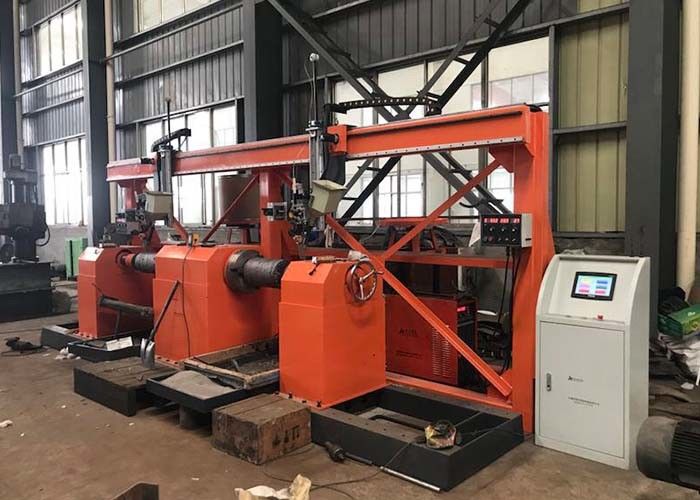

3.5M min 1200mm Continuous Casting Roller Hardfacing Machine 0



3.5M min 1200mm Continuous Casting Roller Hardfacing Machine 1
