Wireless Remote Min 1500mm 0.75kw Overlay Welding Equipment

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Rose

I'm Online Chat Now

Wireless Remote Min 1500mm 0.75kw Overlay Welding Equipment

Wireless Remote Min 1500mm 0.75kw Overlay Welding Equipment
Wireless Remote Min 1500mm 0.75kw Overlay Welding Equipment

Large Image :  Wireless Remote Min 1500mm 0.75kw Overlay Welding Equipment

Product Details:
Place of Origin: CHINA
Brand Name: JINGHUA
Model Number: JH-140
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD+5000-50000+Unit
Packaging Details: Wooden Box Package
Delivery Time: 15-30 Days
Payment Terms: T/T
Supply Ability: 30+Unit+per Month
Detailed Product Description
Machine Type: Rotary Overylay Welding Machine, Rotary Cladding System, Rotary Hardfacing Machine After-Sales Service: Video Technical Support
Color: Red,Blue, Customized Material: Carbon Steel, Alloy Steel
Certification: ISO900 Warranty: 12 Months
Automatic Grade: Automatic Condition: New
High Light:

1500mm Overlay Welding Equipment

,

0.75kw Overlay Welding Equipment

,

0.75kw Weld Overlay Cladding Machine

Weld Overlay Cladding Machine, Overlay Welding Machines & Systems, Overlay welding machine



1. Production Description

JH-140 weld overlay cladding welding equipment uses MITSUBISHI TECOPLC system to control welding parameters, touch screen manipulation settings, surfacing time, etc. Special power supply for hardfacing to ensure stable output characteristics. The operational control system of our hardfacing machine consists of touch screen, control box, and wireless remote operation handle.

This handle helps obtain high working efficiency in hardfacing practices. The X- and Y-axis walking mechanisms have the advantages of accurate positioning, fast response, and few errors under continuous running conditions. Each unit of this hardfacing equipment is connected with imported aviation plug, durable, convenient and attractive in appearance. This automatic welding equipment can be applied to arc welding, submerged arc welding, gas shielded-arc welding, swing arc welding, etc.



2. Specification

Product name Overlay Welding Machine
Effective transverse welding stroke 1500mm; Can be customized
Effective longitudinal welding stroke 3000mm; Can be customized
Welding speed 150-1500mm /min
Gantry gauge 3000mm
Cross slide trim trip (Electric) 60mm
Welding torch up and down stroke (Electric) 260mm
Swing speed 0-2400mm/min
Longitudinal servo motor power 0.75kw
Horizontal servo motor power 0.75kw
Power-driven planker speed up/down 300mm/min

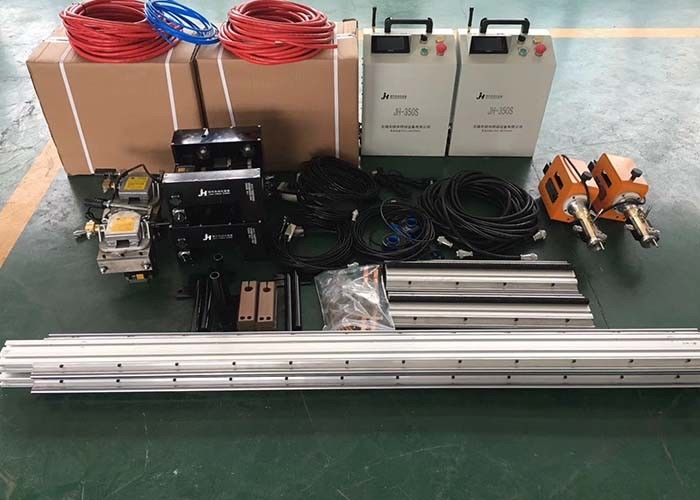

3. Delivery

Wireless Remote Min 1500mm 0.75kw Overlay Welding Equipment 0



Wireless Remote Min 1500mm 0.75kw Overlay Welding Equipment 1
