Touch Screen 3000mm 0.75kw Wear Plate Overlay Welding Machine

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Rose

I'm Online Chat Now

Touch Screen 3000mm 0.75kw Wear Plate Overlay Welding Machine

Touch Screen 3000mm 0.75kw Wear Plate Overlay Welding Machine
Touch Screen 3000mm 0.75kw Wear Plate Overlay Welding Machine

Large Image :  Touch Screen 3000mm 0.75kw Wear Plate Overlay Welding Machine

Product Details:
Place of Origin: CHINA
Brand Name: JINGHUA
Model Number: JH-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD+5000-50000+Unit
Packaging Details: Wooden Box Package
Delivery Time: 15-30 Days
Payment Terms: T/T
Supply Ability: 30+Unit+per Month
Detailed Product Description
Machine Type: Off-line Surfacing Equipment Certification: ISO900
Warranty: 12 Months Automatic Grade: Automatic
Condition: New Color: Customized
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining Voltage: 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V Or 220V/60HZ /3P (Also According To Your Local Voltage)
High Light:

Wear Plate Overlay Welding Machine

,

0.75kw Weld Cladding Equipment

,

3000mm Overlay Welding Machine

Wear Plate Cladding Overlay Welding Machine, Wear Resistant Weld Clad Overlay Machine, Weld Cladding Machine



1. Production Description

JH-150 weld overlay cladding welding equipment uses MITSUBISHI TECOPLC system to control welding parameters, touch screen manipulation settings, surfacing time, etc. Special power supply for hardfacing to ensure stable output characteristics. The operational control system of our hardfacing machine consists of touch screen, control box, and wireless remote operation handle.

It is our new generation automatic welding equipment with multi purposes and high performance. This hardfacing equipment has the advantages of stable overlaying function, easy to operate and convenient in installation. The hardfaced weld overlay can form a metallurgical bond with the substrate. This automatic welding equipment is also used to rebuild parts to OEM specification, or extend the service life of components through enhancing resistance to wear, abrasion, corrosion, heat and impact. Hardfacing machine may also be used selectively to critical wear areas on new parts, or as a means of restoring worn parts to original size.



2. Specification

Product name Overlay Welding Machine
Effective transverse welding stroke 2000mm; Can be customized
Effective longitudinal welding stroke 2000mm; Can be customized
Welding speed 100-1000mm /min
Gantry gauge 3000mm
Cross slide trim trip (Electric) 60mm
Welding torch up and down stroke (Electric) 260mm
Swing speed 0-2400mm/min
Longitudinal servo motor power 0.75kw
Horizontal servo motor power 0.75kw
Power-driven planker speed up/down 300mm/min



3. Pictures

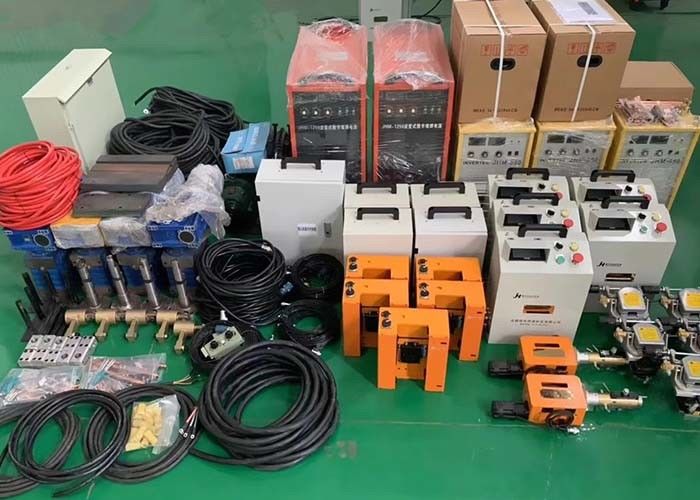

Touch Screen 3000mm 0.75kw Wear Plate Overlay Welding Machine 0



Touch Screen 3000mm 0.75kw Wear Plate Overlay Welding Machine 1



Touch Screen 3000mm 0.75kw Wear Plate Overlay Welding Machine 2
