60HZ 0.9rpm 3000KG Heavy Duty Automatic Welding Machine

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Rose

I'm Online Chat Now

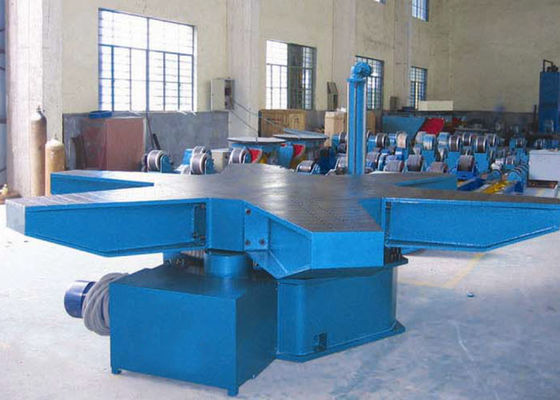

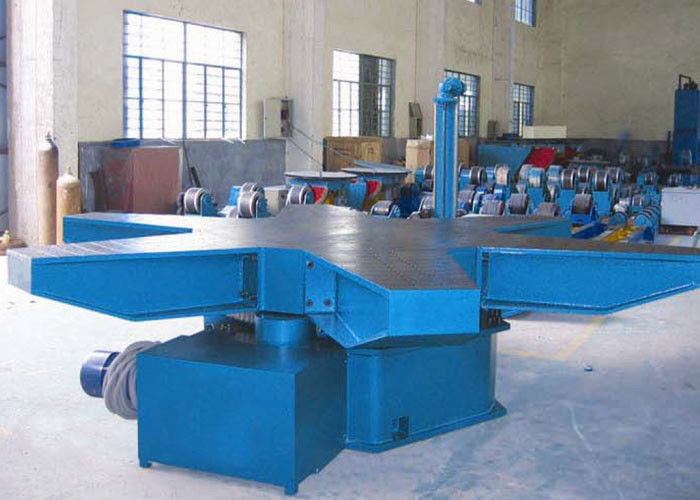

60HZ 0.9rpm 3000KG Heavy Duty Automatic Welding Machine

60HZ 0.9rpm 3000KG Heavy Duty Automatic Welding Machine
60HZ 0.9rpm 3000KG Heavy Duty Automatic Welding Machine 60HZ 0.9rpm 3000KG Heavy Duty Automatic Welding Machine

Large Image :  60HZ 0.9rpm 3000KG Heavy Duty Automatic Welding Machine

Product Details:
Place of Origin: WUXI
Brand Name: JINHUA
Model Number: JHBW-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD+2000-50000+Unit
Packaging Details: Wooden Box Package
Delivery Time: 15-60 Days
Payment Terms: T/T
Supply Ability: 30+Unit+Per Month
Detailed Product Description
Machine Type: Heavy Duty Welding Positioner Condition: New
Material: Carbon Steel, Alloy Steel After-Sales Service: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service
Warranty: 1 Year Color: Yellow, Blue, Customized
Voltage: 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V Or 220V/60HZ /3P (Also According To Your Local Voltage) Usage: Rotating Welding Position
Industries: Cement, Steel, Mining, Power, Security, Agriculture, Recycling Advantage: Automatic Welding
High Light:

0.9rpm Heavy Duty Welding Positioner

,

3000KG Rotary Welding Positioner

,

3000KG Automatic Welding Machine

Heavy Duty Welding Positioner, Automatic Rotating Welding System, Rotary Welding Positioner



I. Machine Instruction
Welding positioner is divided into tilting type, lift type, head and tail stock rotary type,horizontal turning type, double rotating type,etc. Welding positioner consists of worktable turning unit and tilting unit. By means of worktable elevating, tilting and turning, work-piece fixed on the worktable can be placed to an ideal angle for welding and assembly. The speedof worktable is controlled continuously variably with inverter to attain satisfactory welding speed.

For the reason of eccentric-distance and gravity -center-distance,bigger model should be selected for longer work-piece and work-piece which gravity-center has more offset. Standard welding positioner can not meet requirement for all work-pieces, please make sure to offer the shape,weight and machining technology of work-piece to us, so we can provide suitable proposalfor your requirement.



II. Main Technical Parameters

Type Rated Loading (Kg) Rotation Speed (rpm) Tilting Speed (rpm) Tilting Angle (Degree) Worktable Dia (mm) Rotation Power (kw) Tilting Power (kw) Speed Regulation Max. Eccentricity (mm) Max. Gravity (mm)
JHBW-01 100 0.4-4 Manual 0-90 Φ 400 0.18 / AC Frequency Conversion Stepless Speed Regulation 100 200
JHBW-03 300 0.1-1 Manual 0-90 Φ 600 0.18 / 150 200
JHBW-03 300 0.1-1 1 0-90 Φ 600 0.18 0.18 150 200
JHBW-06 600 0.09-0.9 0.42 0-90 Φ 1000 0.75 0.75 150 200
JHBW-12 1200 0.05-0.5 0.4 0-120 Φ 1200 1.1 1.1 200 250
JHBW-30 3000 0.05-0.5 0.23 0-135 Φ 1400 1.1 2.2 200 300
JHBW-50 5000 0.05-0.5 0.2 0-135 Φ 1500 1.5 3 200 300
JHBW-100 10000 0.05-0.5 0.2 0-135 Φ 2000 3 4 200 400
JHBW-150 15000 0.04-0.4 0.15 0-135 Φ 2200 4 7.5 200 500
JHBW-200 20000 0.04-0.4 0.15 -45 - 90 Φ 2500 5.5 11 200 600
JHBW-300 30000 0.03-0.3 0.15 -45 - 90 Φ 3000 5.5 15 200 650
JHBW-500 50000 0.02-0.2 0.06 -45 - 90 Φ 4000 11 18.5 200 800

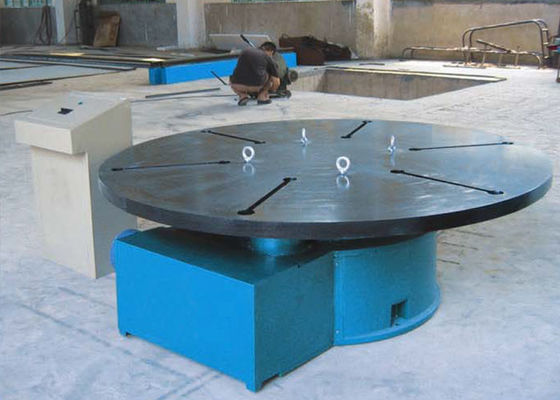

60HZ 0.9rpm 3000KG Heavy Duty Automatic Welding Machine 060HZ 0.9rpm 3000KG Heavy Duty Automatic Welding Machine 1
