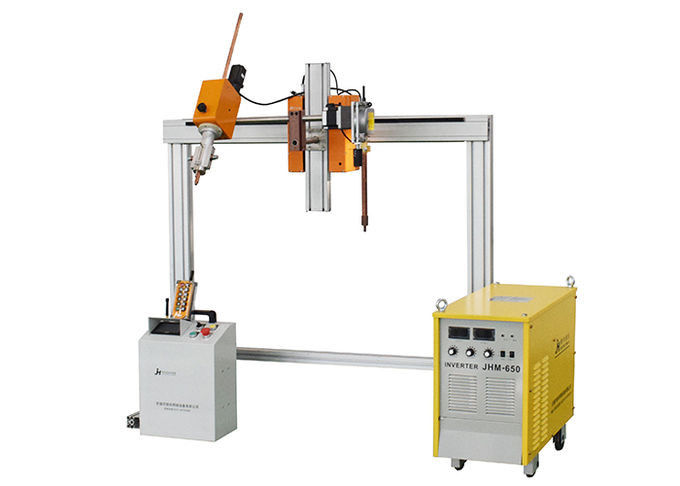

5500Mm Hardfacing Welding Machine For Steel Industries

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Rose

I'm Online Chat Now

5500Mm Hardfacing Welding Machine For Steel Industries

5500Mm Hardfacing Welding Machine For Steel Industries
5500Mm Hardfacing Welding Machine For Steel Industries

Large Image :  5500Mm Hardfacing Welding Machine For Steel Industries

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: JINHUA
Model Number: JH-350S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD+5000-50000+Unit
Packaging Details: Wooden Box Package
Delivery Time: 15-60 days
Payment Terms: T/T
Supply Ability: 30+Unit+per Month
Detailed Product Description
Condition: New Advantage: Wear Resistance
Warranty: 12 Months Certification: Iso9001
Color: Customized Keyword: Resistance Welding Machine
Voltage: 20V/380V/400V, 220V/380V/415V/440V/customized Industries: Cement, Steel, Mining, Power, Security, Agriculture, Recycling
High Light:

5500Mm Hardfacing Welding Machine

,

Steel Hardfacing Welding System

,

Hardfacing Welding Machine

Automatic Hardfacing System



Product Description
JH-350S application fields cover cement, power, steel, mining, petrochemical and other industries, for large vertical mill,coal mill, continuous casting roller, crusher, roller press and other wear resistance equipment wear liner to repair hard surface .The equipment adopts digital system control and supports triaxial curve interpolation welding, air gouging and other functions.
Our hardfacing machine is our new generation automatic welding equipment with multi purposes and high performance. This hardfacing equipment has the advantages of stable overlaying function, easy to operate and convenient in installation.



Characteristics

1. This automatic welding equipment can be applied to arc welding, submerged arc welding, gas shielded-arc welding, swing arc welding, etc.

2. Our automatic welding equipment can realize interactive operation through using TECO touch screen, human-machine interface and wireless remote control.
3. This hardfacing machine is highly-effective in real-time monitoring of operation process, production, welding time, and fault.
4. The aluminum alloy trolley and arm are designed by adopting a specially-designed turnover mechanism, and the welding head adopts universal adjusting lever. When the angle and height position is adjusted, this hardfacing equipment can be quickly debugged and installed.



Specification

Manipulator Heavy-duty motorized cross-slides
Turntable 6 foot diameter table, 15 ton capacity with slip ring
Standard Power Source Miller Maxstar 700 with Coolmate 3.5 cooler, Maxstar 200 DX
Optional Power Source Other power sources are available
Maximum Height Bore Depth Up to 78.7 in (2000 mm) depending on torch type and vertical slides used
Minimum Weldable Bore 1.77 in (45 mm) diameter
Water Cooled TIG Torch Various fixed and adjustable-angle torch heads available
Welding Speed 7.87 in/min to 17.7 in/min (20 to 45 cm/min)
Air Pressure Requires 3-4 bar / 45-60 psi
Control KEY 1250 PLC Controller
Control Functions Controlled by 15 in TFT HMI or remote pendant
Input Power Miller Cooler Coolmate 3.5 - 115 VAC 50/60 Hz (from power source)
Overall Height 216.5 in (5500 mm)
Shipping Weight 21,054 lb (9550 kg) complete system



3150mm 2000KG 0.75kw Overlay Cladding Welding Machine 1
