6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Rose

I'm Online Chat Now

6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine

6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine
6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine 6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine 6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine

Large Image :  6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: JINHUA
Model Number: JH-380
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD+2000-50000+Unit
Packaging Details: Wooden Box Package
Delivery Time: 15-60 days
Payment Terms: T/T
Supply Ability: 30+Units+Per Month
Detailed Product Description
Machine Type: Pipe Cladding Machine, Pipe Inner Hardfacing Machine, Pipe Inner Surface Overlay Welding Machine Condition: New
Material: Carbon Steel, Alloy Steel After-Sales Service: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service
Warranty: 1 Year Color: Yellow, Blue, Customized
Voltage: 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V Or 220V/60HZ /3P (Also According To Your Local Voltage) Industries: Cement, Steel, Mining, Power, Security, Agriculture, Recycling
High Light:

6mm Pipe Harfacing Machine

,

28.5Kw Overlay Welding Machine

,

Pipe Hardfacing Welding Machine

Pipe Harfacing Machine, Pipe Inner Hardfacing Machine, Pipe Inner Surface Overlay Welding Machine

1. Machine Introduction

JH-380 Inwall Pipe Automatic Welding Machine is a new generation of the automatic overlay weldingmachine developed by our company, which is featured with a high level of automation, designs conforming to the manual machine operation and simple operation.JH-380 is functioned by the welding parameter memory storage, wireless remote control, automatic location finding, circulating water cooling control with variable frequency, abnormal information alarm and so on against any demand for manual intervention to the welding process of the machine. The machine is controlled by the TECO high-performance PLC and 10.2-inch man-machine touch screen and its offsetting is controlled by synchronous lifting trolley to ensure the accuracy of welding process. Moreover, the machine rotates the pipes by synchronous roller drive, which maximizes the synchronization coefficient between the rotary drive machine and the pipe.



2. Machine Parameter

Diameter Range of Overlay Welding Φ120-1000mm
Maximum Overlay Welding Length 6000 mm
Overlay Welding Speed 0-250mm /min
Overlay Welding Thickness 3-6mm
Allowable Weight 2.0T
Maximum Power 28.5Kw
Water Cooling Control System Variable frequency circulating water cooling
Control System The control system adopts Variable frequency + digital system control
Idle Travel Speed 0-7000mm/min
Allowable Material for Overlay Welding Q235 Q345
Elevation of Overlay Welding Torch 0-100mm
Elevating Mode of Overlay Welding Torch Manual mechanical lifting
Precision Standard of Whole Machine Conforming to JB/T5102-1999
Linear Positioning Accuracy ±1mm/5m
Velocity Error ±2%



3. Pictures

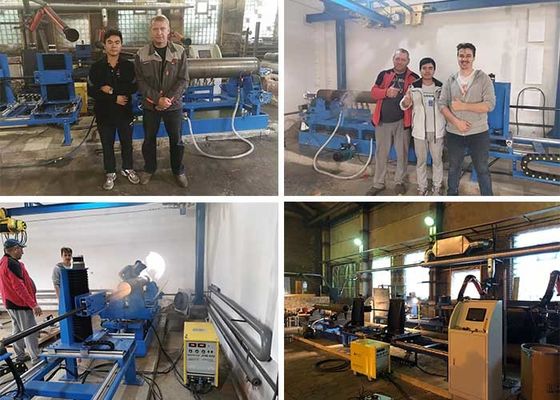

6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine 0

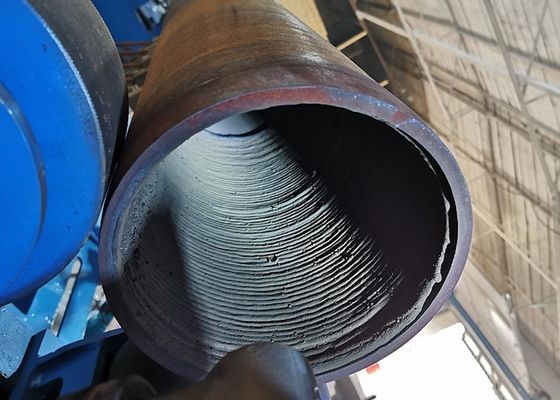

6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine 1

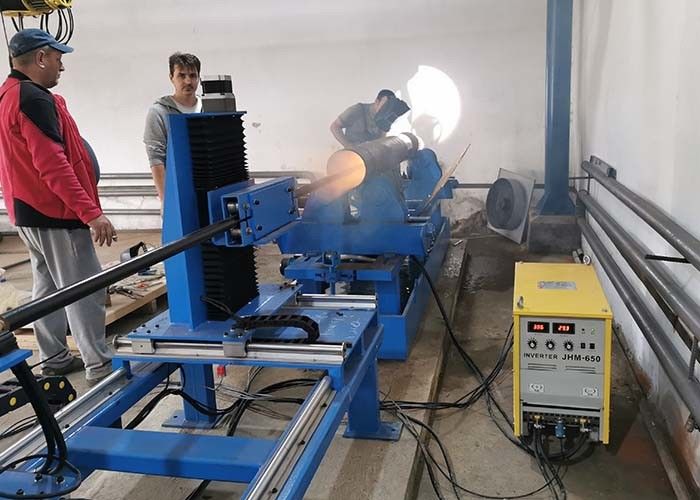

6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine 2
