2.2r min 500A 2T 2000mm 0.6MPa Pipe Cladding Machine

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Rose

I'm Online Chat Now

2.2r min 500A 2T 2000mm 0.6MPa Pipe Cladding Machine

2.2r min 500A 2T 2000mm 0.6MPa Pipe Cladding Machine
2.2r min 500A 2T 2000mm 0.6MPa Pipe Cladding Machine

Large Image :  2.2r min 500A 2T 2000mm 0.6MPa Pipe Cladding Machine

Product Details:
Place of Origin: WUXI
Brand Name: JINHUA
Model Number: JHC300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD+2000-50000+Unit
Packaging Details: Wooden Box Package
Delivery Time: 15-60 Days
Payment Terms: T/T
Supply Ability: 30+Unit+Per Month
Detailed Product Description
Machine Type: Pipe Automatic Welding Machine, Tube Automatic Welding Machine Condition: New
Material: Carbon Steel, Alloy Steel After-Sales Service: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service
Warranty: 1 Year Color: Yellow, Blue, Customized
Voltage: 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V Or 220V/60HZ /3P (Also According To Your Local Voltage) Usage: Weld Hydraulic Cylinder Flange
Industries: Cement, Steel, Mining, Power, Security, Agriculture, Recycling Advantage: Automatic Welding
High Light:

0.6MPa Pipe Cladding Machine

,

2T Tube Welding Machine

,

2000mm Pipe Cladding Machine

Pipe Automatic Welding Machine, Tube Automatic Welding Machine



I. Machine Instruction

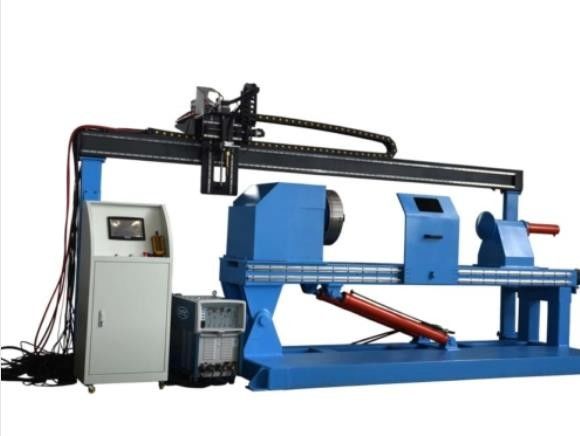

This equipment is composed of lathe bed, rotating head, cross member, manual bracket, pneumatic return sliding table, pneumatic tailstock, elevating mechanism of the torch, welding oscillator, adjusting mechanism of the torch, OTC 500A welding power source, water-cooled torch(equipped with cooling water tank) and electrical control system, etc. It has the features of easy-operation and fast.
1. Lathe Bed
The lathe bed is welded & combined by section bar and steel plate and treated with annealing. The work surfaces can ensure the installation accuracy. The rotating head and 2 support brackets are installed on slideway from the left to the right. The support brackets can be pushed & moved on the slideway manually to adjust the position of the support brackets substantially.
The removable safety shield is installed on the lathe bed.
2. Rotating Head
The swing bearing is composed of swing shafting and box, etc. It is driven by the AC gear motor. Conductive device, detection device and wiring terminal are installed inside it. The rotating speed of main spindle is stepless changing. Self-centering three jaw chuck is installed on the flange plate of the main spindle. Use K11-500D three jaw chuck.
3. Support Bracket
The support bracket is composed of baseplate, guide shaft, guide bushing, support plate, adjusting screw, nut sleeve, pressure plate and roller seat, etc. The V-shaped roller locating seat can go up and down by turning the adjusting screw or adjusting the position of the roller seat to accommodate the workpieces with different diameters. Adjust the position of the support bracket to accommodate the workpieces with different lengths.



II. Main Technical Parameters

Model Name JHC300
Rated Load Capacity 2T
Workpiece Length Range ≤2000mm
Workpiece Diameter Range φ80-φ600mm
Rotating Speed of The Main Spindle 0.19-2.2r/min
Elevating Stroke of The Torch 300mm
Manual Adjusting Range of The Torch X:≥50mm Y:≥50mm
Turnover Angle of The Workpiece 360°
Pressure of The Compressed Air 0.3~0.6MPa
Rated Welding Current 500A
Welding Centre Height 950mm



IV. Pictures

2.2r min 500A 2T 2000mm 0.6MPa Pipe Cladding Machine 0



2.2r min 500A 2T 2000mm 0.6MPa Pipe Cladding Machine 1



2.2r min 500A 2T 2000mm 0.6MPa Pipe Cladding Machine 2



2.2r min 500A 2T 2000mm 0.6MPa Pipe Cladding Machine 3
