8000mm Pipe Cladding Machine

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Rose

I'm Online Chat Now

8000mm Pipe Cladding Machine

8000mm Pipe Cladding Machine
8000mm Pipe Cladding Machine

Large Image :  8000mm Pipe Cladding Machine

Product Details:
Place of Origin: WUXI, JIANGSU
Brand Name: JINHUA
Model Number: JH-360
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD+2000-50000+Unit
Packaging Details: Wooden Box Package
Delivery Time: 15-60 Days
Payment Terms: T/T
Supply Ability: 30+Units+per Month
Detailed Product Description
Machine Type: Pipe Fitting Cladding Machine, Pipe Fitting Overlay Welding Machine Condition: New
Material: Carbon Steel, Alloy Steel After-Sales Service: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service
Warranty: 1 Year Color: Yellow, Blue, Customized
Voltage: 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V Or 220V/60HZ /3P (Also According To Your Local Voltage) Industries: Cement, Steel, Mining, Power, Security, Agriculture, Recycling
Advantage: Wear Resistance
High Light:

28.5Kw Overlay Welding Machine


8000mm Pipe Cladding Machine


2.0T Pipe Cladding equipment

Elow Pipe Automatic Cladding Machine, Tube Fitting Cladding Machine, Tube Fitting Overlay Welding,


1. Product Description

JINGHUA has developed a new cladding division, with state-of-the-art machines to perform weld overlays. JINHUA can provide the most advanced solutions for cladding of pipeline components, and offers the best weld overlay quality to meet the increasing requirements of the market. The control of each phase of the process ensures that all welds are performed in the more efficient manner, using the best parameters to ensure that the result is “safe and sound”.

The barreled wire is located behind the wire feeding mechanism and slipped with the movement of the wire feeder to ensure a smooth and smooth wire feeding. If the welding wire quality is secured, no wire will be broken and the machine downtime is thus reduced. Trouble Halting and Continue to Weld from the Breakpoints:When a bucket of wire is used up or broken or the wire feeding is not smooth by factors, the machine will halt automatically and prompt problems such as "poor wire feeding" and "drive alarm" on touch screen, which is also functioned by a high-power loudspeaker and warning lights to remind the operator to press button of the Continue to Weld From the Breakpoints after the trouble is shot.
The Fully Open Welding Parameter Adjustment enables the separate controls to the welding voltage and current (wire feeding speed), of which the speed of wire feeding can be matched automatically according to the voltage to allow a more diversified welding process when compared with the traditional welding solutions. The fume extractor on the side of chuck is designed to reduce the spatter from the other side of the chuck to the direction of welding as well as the damage caused by the smoke and dusting forming on the weld bead. The machine is designed to fully fitted for the open arc overlay welding process on the inwall of the pipes to completely reflect its arc welding technique.


2. Machine Parameter

Diameter Range of Overlay Welding Φ120-1000mm
Maximum Overlay Welding Length 8000 mm
Overlay Welding Speed 0-250mm /min
Overlay Welding Thickness 3-6mm
Allowable Weight 2.0T
Maximum Power 28.5Kw
Water Cooling Control System Variable frequency circulating water cooling
Control System The control system adopts Variable frequency + digital system control
Idle Travel Speed 0-7000mm/min
Allowable Material for Overlay Welding Q235 Q345
Elevation of Overlay Welding Torch 0-100mm
Elevating Mode of Overlay Welding Torch Manual mechanical lifting
Precision Standard of Whole Machine Conforming to JB/T5102-1999
Linear Positioning Accuracy ±1mm/5m
Velocity Error ±2%


3. Pictures

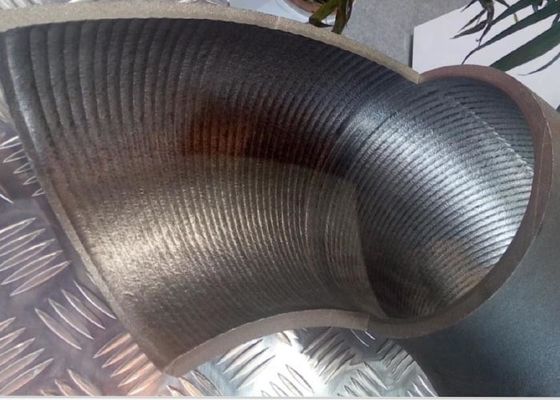

8000mm Pipe Cladding Machine 0


8000mm Pipe Cladding Machine 1


8000mm Pipe Cladding Machine 2


8000mm Pipe Cladding Machine 3
