Product Details:
Payment & Shipping Terms:
|
| Machine Type: | Welding Positioner | Condition: | New |
|---|---|---|---|
| Material: | Carbon Steel, Alloy Steel | After-Sales Service: | Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service |
| Warranty: | 1 Year | Color: | Yellow, Blue, Customized |
| Voltage: | 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V Or 220V/60HZ /3P (Also According To Your Local Voltage) | Usage: | Rotating Welding Position |
| Industries: | Cement, Steel, Mining, Power, Security, Agriculture, Recycling | Advantage: | Automatic Welding |
| High Light: | 0.5rpm Automatic Welding Machine,1400mm Welding Positioner,1.5kw Automatic Welding Machine |
||
Features

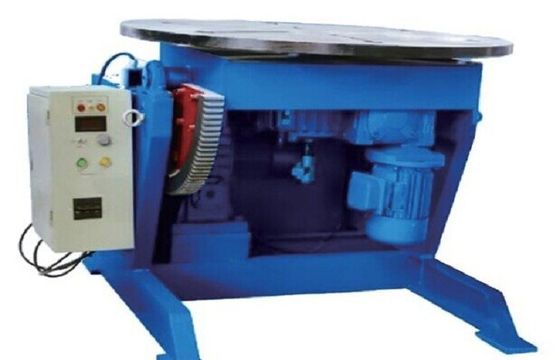

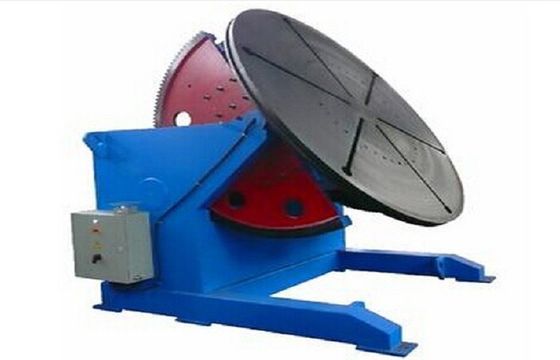

+ Mainly comprises the rotation system, tilt system and control box
+ Present the weld instantly in the down hand position
+ Inverter contolled rotation with high accuracy and stability

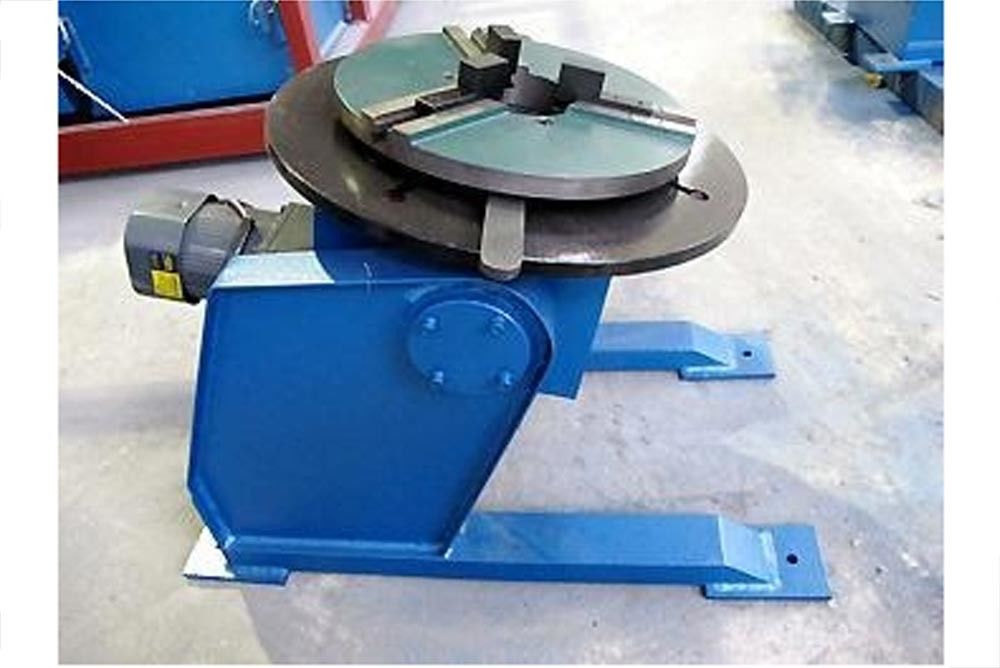

+ Matched with CO2/MAG/MIG or plasma welding machine or three-jaw chunks
Standard line
| Model | JHB01 | JHB03 | JHB06 | JHB12 | JHB30 | JHB50 | JHB100 |
| Load Capacity - kgs | 100 | 300 | 600 | 1200 | 3000 | 5000 | 10000 |
| Max Centre of Gravity - mm | 150 | 100 | 100 | 100 | 150 | 200 | 250 |
| Eccentricity - mm | 100 | 100 | 100 | 150 | 200 | 300 | 400 |
| Table diameter -mm | 400 | 600 | 1000 | 1200 | 1400 | 1500 | 2000 |
| Rotation speed -rpm | 0.1-1 | 0.2-2 | 0.09-0.9 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.2 |
| Rotation motor -kw | 0.18 | 0.18 | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
| Tilt speed - rpm | Manual | Manual | 1.1 | 0.67 | 0.23 | 0.14 | 0.14 |
| Tilt motor -kw | / | / | 75 | 1.1 | 1.5 | 2.2 | 5.5 |
| Degree of Tilt (Table) | 0-90 | 0-90 | 0-90 | 0-90 | 0-120 | 0-120 | 0-120 |
