Carbon Steel 6500mm Rotary Pipe Cladding Machines

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Rose

I'm Online Chat Now

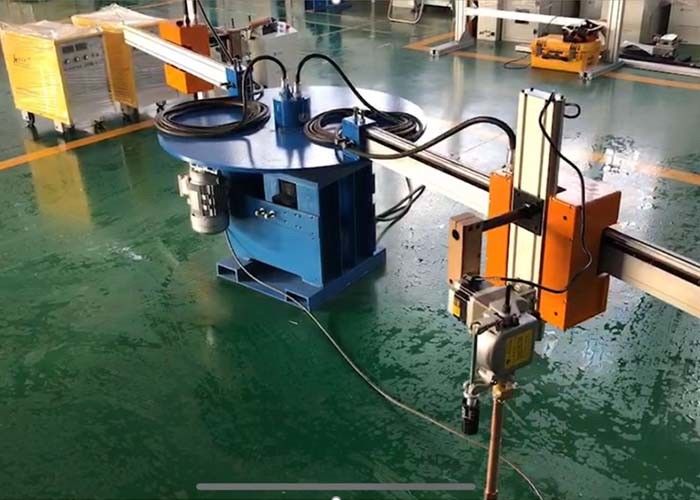

Carbon Steel 6500mm Rotary Pipe Cladding Machines

Carbon Steel 6500mm Rotary Pipe Cladding Machines
Carbon Steel 6500mm Rotary Pipe Cladding Machines

Large Image :  Carbon Steel 6500mm Rotary Pipe Cladding Machines

Product Details:
Place of Origin: WUXI, JINHUA
Brand Name: JINHUA
Model Number: JH-DEG360
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD+2000-50000+Unit
Packaging Details: Wooden Box Package
Delivery Time: 15-60 Days
Payment Terms: T/T
Supply Ability: 30+Unit+Per Month
Detailed Product Description
Machine Type: Rotary Overylay Welding Machine, Rotary Cladding System, Rotary Hardfacing Machine Condition: New
Material: Carbon Steel, Alloy Steel After-Sales Service: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service
Warranty: 1 Year Color: Yellow, Blue, Customized
Voltage: 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V Or 220V/60HZ /3P (Also According To Your Local Voltage) Industries: Cement, Steel, Mining, Power, Security, Agriculture, Recycling
High Light:

6500mm Overlay Welding Machine

,

6.5mm Pipe Cladding Machines

,

1500mm Pipe Cladding Machines

Rotary Overylay Welding Machine, Rotary Cladding System, Rotary Hardfacing Machine



1. Working Principle

The specialized JH-DEG360 Refiner Plate Overlay Welding Machine can carry out the off-line overlay welding to refiner plates by a combination with off-line welding equipment, among which JH-DEG360 inputs rotation and rotary conduction, while the off-line equipment works as welding unit.



2. Component

The JH-360DEG is composed of a rotary platform, first-stage RV deceleration, second-stage rotary platform and various rotating conductive parts. During the welding, the client shall install his offline welding equipment on JH-360DEG and we will be responsible for the technologies to the control cable interface. The JH-360DEG can input rotation, load-bearing support and conductive link and work with the offline equipment to form a welding unit for automatic mill overlay welding.



3. Composition of Electrical Parts

The electrical part is mainly controlled through the frequency converter, stepless speed regulation and circulating water cooling power control.



4. Specification



Diameter Range of Overlay Welding 100mm-6500mm
Height of Welding Pipes 500mm-1500mm
Diameter of Welding Wire φ1.2-φ2.8mm(Flux-Cored Wire)
Overlay Welding Thickness of Monolayer 2.5-6.5mm
Rotating Speed 0-1500mm/rpm



Carbon Steel 6500mm Rotary Pipe Cladding Machines 0



5. Delivery



Carbon Steel 6500mm Rotary Pipe Cladding Machines 1



Carbon Steel 6500mm Rotary Pipe Cladding Machines 2



Carbon Steel 6500mm Rotary Pipe Cladding Machines 3



Carbon Steel 6500mm Rotary Pipe Cladding Machines 4
