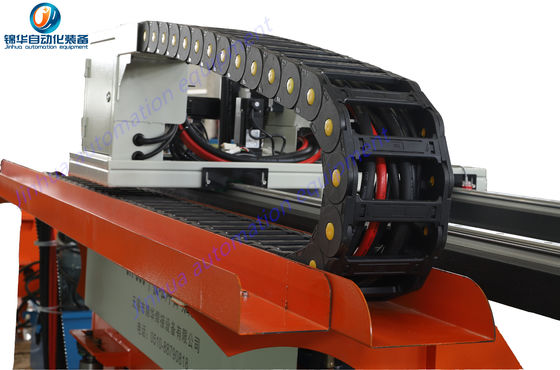

Table Steel Plate Hardfacing Overlay Welding Machine

Table Steel Plate Hardfacing Overlay Welding Machine
Table Steel Plate Hardfacing Overlay Welding Machine Table Steel Plate Hardfacing Overlay Welding Machine Table Steel Plate Hardfacing Overlay Welding Machine

Large Image :  Table Steel Plate Hardfacing Overlay Welding Machine

Product Details:
Place of Origin: WUXI, CHINA
Brand Name: JINHUA
Model Number: JH-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD+2000-50000+Unit
Packaging Details: Wooden Box Package
Delivery Time: 15-60 days
Payment Terms: T/T
Supply Ability: 50+unit+per m50+unit+per month
Detailed Product Description
Condition: New Machine Type: Welding Manipulator
Style: Welding Machine Key Selling Points: Automatic
Certification: ISO9001 Warranty: 1 YEAR
Rated Duty Cycle: 100% Voltage: 380v
Application: For Steel Mill And Rolling Sugar Mill After Warranty Service: Video Technical Support, Online Support
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining Usage: Bead-on-plate Welding
High Light:

Hardfacing Overlay Welding Machine


Hardfacing Welding Machine


3100mm Overlay Welding Machine

Table Type Overlay Welding Automatic Machine


Product Description

The JH-800 Table Type Overlay Welding Automatic Machine is a new generation of the table type overlay welding machine developed by our company, which is functioned by the high performance PLC + digital system for its control system, the TECO servo precision system control for its pallet displacement, the latest TECO JSPD servo system control technology for its wire control, the horizontal double driving guides + code mode of feed control for its ejector plate feeding displacement of parent metals, and the SAMSR driver + OPG motor control for its powder dropping in which the precision of wire feeding and powder dropping is enabled within 1.0g.


Direction for use
The hydraulic pressure of the system adopts the analog quantity to control its automatic pressure circulation of setting values to improve the pressure control accuracy up to an range of 0.15%, which controls the welding torch within compound swing of
10-48mm for welding, and cools the welding torch head by circulating cooling water constant pressure cooling while cooling the
parent metals by variable frequency water pressure circulating, avoiding the deformation of the base metal due to the overheat in
the welding process.

Description of application effect

The difference between the JH800 and traditional machines is indicated by our optimization to the parent metal workpiece movement of the machine in welding process to minimize the mechanical wear in the long-time operation, and reduce the attenuation
coefficient of accuracy. The positioning accuracy of the pallet in the X-axis and the Y-axis directions to the parent material is
controlled within millimeters and the machine is always accurately controlled to each movement in both automatic and manual
welding modes.
Product Paramenters
Welding Length 3100mm
Welding Width 1560mm
Idle Travel Speed 0-9800mm/min
Elevation of Overlay Welding Torch 0-80mm
Allowable Material for Overlay Welding Q235 Q345 Mild Steel Plate
Lift Mode of Overlay Welding Torch Manual Mechanical Adjustment
Wear Layer Overlay Welding Speed 100-300 mm/min
Wear Layer Overlay Welding Thickness 2-20mm
Linear Positioning Accuracy 1mm/5m
Velocity Error 0.50%
